Simple Line MAX
-

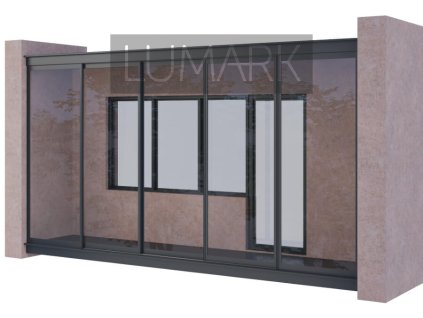

Frame glazing Simple Line Max®
- frames of sliding windows (vertical profiles are reinforced), guide rails and closing strips made from aluminum alloy profiles
- 1-4 sliding sashes glide along the bottom track and are guided by the top track of the same shape
- option to perform “sash movement into the curtain”, maximum 4D+4D
- between the panes there is a brush seal
- in the bottom rail there are drilled holes for drainage of water and melting snow
- tempered glass 6 mm thick can be used as the fill of sliding sashes
- option of a lockable handle
Bestsellers
Product sorting
1 items total
List of products
FREEFREE
0,05 € incl. VAT
0,04 €
Our glazing is of high quality and has been tested by thousands of installations and years of use. Glazing for balconies, loggias, terraces, pergolas, and gazebos can be chosen...
Listing controls
1 items total
| Simpleline | Simpleline MAX | |
| Attachment of parts | slides on the bottom – load-bearing rail – the top rail is only a guide | slides on the bottom – load-bearing rail – the top rail is only a guide |
| Locking capability | yes | yes |
| Panel width | max. width of one leaf is 1200 mm | max. width of one leaf is 1000 mm |
| Panel height | max. height 2100 mm | max. height 2700 mm |
| Number of sliding leaves | min. 1, max 8 | min. 1, max 8 |
| Fill types | glass 4-6 mm, Connex 4-6 mm | Tempered glass 4-6 mm, Connex 33.1 - 6 mm |
| Weight |
surface density: 16 kg/m2 (when using 6 mm tempered glass) |
|
| Applications | balconies, loggias, smaller openings | pergolas, room dividers, large openings |
